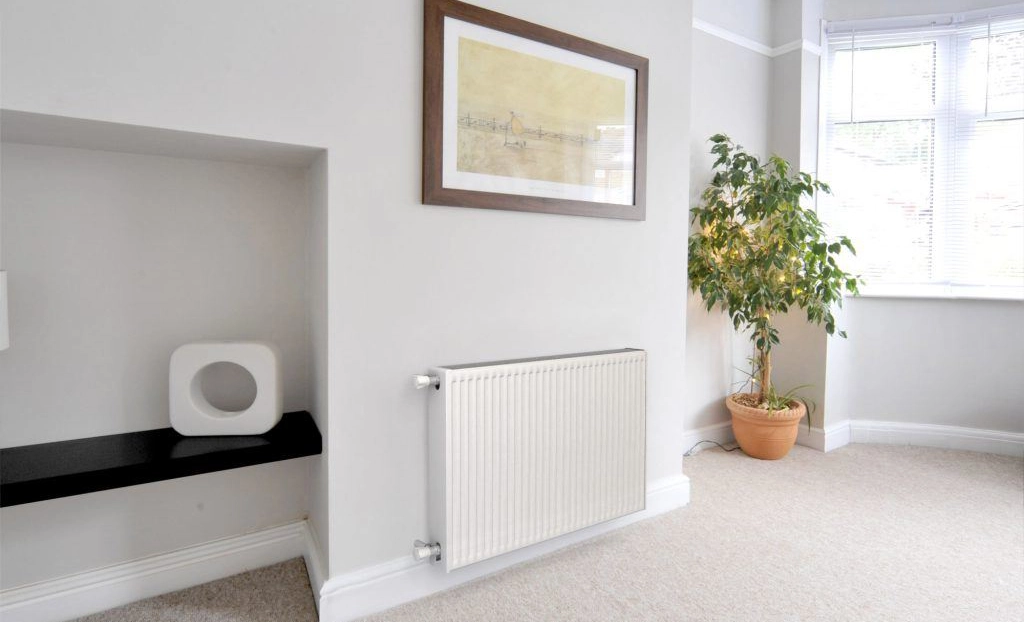

Flexible Axle Panel Radiator

Description

Flexible Branch Panel Radiators are specifically designed for the Middle Eastern market.
 With a height of 600 mm, they accommodate both 50 cm and 55 cm branch pipe distances simultaneously, offering ease of installation.
 Manufactured using DC01 grade cold-rolled steel (DIN EN 10130), these radiators feature 33.3 mm pitch water channels and a wide convector surface, ensuring high thermal efficiency.

Technical Specifications

  • DC01 grade cold-rolled panel and convector sheet (DIN EN 10130)
  • Aesthetic design with 33.3 mm pitch water channels
  • Nano-technological surface treatment for enhanced corrosion resistance
  • Water-based primer and RAL 9016 electrostatic powder coating
  • Secure protection with plastic bracket covers and cardboard side panels
  • Mounting accessories included: L-bracket, blind plug, air vent plug, wall plugs, clips, and screws
  • Connections: 4 x G ½” and 6 x G ½”

Parameters

  • Type: 22
  • Length: 400 mm – 3000 mm
  • Height: 600 mm
  • Test pressure: 13 bar
  • Maximum operating pressure: 10 bar
  • Maximum operating temperature: 110 °C
  • Production standard: Compliant with TS EN 442
